Reviews of Opcom Firmware 1.95

People advertise Opcom as v1.65 or v1.70 or v1.95 ( I really don't know if this is real because the opcom v16xxxx was in Polish not English ) for the one who don't even know what they buy.

Look here:
Opcom firmware 1.95
Opcom firmware 1.70
Opcom firmware 1.65
 Opcom OP-Com 2014V Firmware V1.95 OBD2 Diagnostic Interface for Opel
Opcom is a tool that use opcom software. The last opcom version is 150406 EN and 150506 DE.
Both is ask to upgrade the firmware in tge opcom tool to fw 1.64


So for opcom clones:
- if you are using opcom china clone 08-2010 which is actually opcom 100219a then the tool must have fw1.39 ( no newer )
-if you are using vauxcom 120309a ( w/ or w/o new data base ) you need to use opcom fw v1.45 ( no newer )


Op com diagnostic review:

Opcom review 1:

Although this is a brilliant bit of kit for all Vauxhalls. BE WARNED, this wont work properly for Corsa C as you will get continuous looping (Okay for all other Vauxhalls cars though). Sellers are selling these with a 1.44 or 1.45 Firmware and saying its the latest. Yes that Firmware is the latest but the Software that comes with it has not been updated for that Firmware when its used on the Corsa C. The only way round this is to get the 1.39 Firmware (which is actually the best available) and flash the interface so that its running on 1.39 Firmware. Not for the fainthearted though as doing it wrong will damage the interface. If you have a Corsa C then look for Opcom with 1.39 Firmware. If you have any other car in the Vauxhall range then any of the Firmwares will work perfectly. Its just Firmware 1.44 or 1.45 that will not work as it should with the Corsa C.

Opcom review 2:

This is a great peace of kit, I own 2 vauxhalls, one a 2003 corsa c 1.2 and a 2007 combo van 1.7cdti
I bought this kit to sort out a failed instrument cluster on the wifes corsa c due to the speedo stopped working, at first it didnt connect and kept going onto loop mode but a quick search of the internet told me that the dongle needs to be running 1.39 firmware as mine was on 1.45 which wont work with corsa c and other vauxhalls, so downgraded the firmware and it now connects to all the cars modules, quickly sorted out my instrument cluster problem, a replacement was needed and I programmed it fine with opcom, this alone would of cost at a vauxhall garage, also we only had 1 key for the corsa so had a new key cut at a cobblers and I was able to programe it in with ease....again another steelership rip-off, 15 vs 350

Its amazing software and pretty much on par with the dealership tech 2 system, opcom can programme new key remotes + the key immobiliser transponders, new instrument clusters, ecus, airbags, abs and body control modules, there isnt a lot it cant do.
Recently used it to track down an EGR fault on my combo, the live data and record feature makes it easy to trace problems mine turned out to be sticking by what the figures where showing, I would of been playing parts darts with out this software as I had no fault codes, I cant praise it enough money well spent and saved at the same time....from staying away from the dealership as this is where they make thier money.

Opcom review 3:

The scanner worked fine on my 1997 Omega which other scanners failed to do. It showed me exactly what was wrong and I replaced the part it said and the car now works fine with no fault codes.
I would recommend it for the older Vauxhalls as well as newer ones.

However, This unit does not read the codes on the Frontera 3.2.
Apparently it is regarded as an Isuzu by Op-Com so they did not include the software for it.


Opcom review 4:

I have an old dell laptop running windows vista.
Popped the disk in and installed the software.
Plugged the USB in and the tool into the car and asked for drivers which were also on the disk so clicked to install and within 5 minutes was up and running reading and clearing fault codes from my 2008 Zafira 1.9 cdi (150).

I guess you would not be buying this if you were not inclined to get your hands dirty and fiddle a bit but it was a lot easier to use then I thought.
I would highly recommend. I will never have to pay a mechanic again to clear these pesky codes !!

Opcom review 5:

I have a vectra and I got the opcom had a bit of a problem getting the software onto my laptop but the company helped me all the way and even sent out a new disc incase that was the problem, I run windows 7 on the laptop but instead of using copy as told to do so by the instructions I used copy to folder there you can copy to the hardisc "C" and then download the drivers and it worked a treat

Opcom review 6:

Saved me a bucket load of cash on its first use and ell continue to save me a bucket load f cash each time my Omega puts an orange light on the dash.

Opcom review 7:

Delivered in 24 hrs. Did NOT like the sticky label on the CD. My CD drive instructions say "never play anything with sticky label on" so I had to remove it, which was very difficult and left a layer of sticky glue on the surface. Why didn't you put the label on the CD sleeve? I have wiped most of the glue off now with meths, the laptop CD drive reads it but not the desktop pc, but my desktop drive may be faulty.
Having said that everything worked and NJ Diagnostics very kindly offered me a replacement CD anyway.
It took about 40 mins to transfer CD on to my laptop, maybe because of the glue. I didn't install straight from the CD but copied from CD to laptop desktop ( I mean the desktop of the laptop, after all these years I have just realised the ambiguity). Then I ran the .exe file from the desktop.
There are 5 file/folders plus the read me file.
the .exe file
the drivers folder
the huge video guide
a folder with specific manuals in .pdf, (may be needed)
A small video with install instructions. USE IT!.

First disable your antivirus and firewall.
Copy 5 folders to pc desktop.
The video guides folder is huge, over half a Gb and very blurry. You can do without it, if you can get as far as running the software and talking to the interface then you are clever enough go ahead without this guide.
But DO watch the small video. Go carefully. The drivers file is used by the program during installation but when you load the drivers yourself you will load them from "program files" as explained.
Double click the .exe and follow the short video.
A small cheesy installation window opens up where you choose 32 or 64 bit and your language.

When you get to the end of the installation and have lights on the black interface and have done the software test, close the program, leave "Windows" on, take your laptop with the attached interface to your car, plug in the interface to the socket in the car, (under the flap under the handbrake in my Astra), turn on the ignition, probably no need to start the engine, run the program, select your vehicle the same as you did when you followed the short video, double click on each item for year and model, select the engine type, and the program should now spring in to action and recognise your car.
If you are working on airbags, remember that they are not in the Engine section, you don't need that at all, they are in the "Body" section.
Note the fault codes and clear them. The airbag light doesn't go out immediately, but I looked after a few seconds and it had gone out. I don't know what I did at the time, maybe there is just the delay, or maybe it was because I closed a window. I thought I might have to turn everything off and turn on thre ignition again but I didn't, the light went our while everything was still on.
I am so pleased!



Opcom firmware 1.95 1.70 1.65 1.64 1.59 1.45 1.39 - avoiding garbage:
http://obd2-diag.blogspot.com/2016/01/opcom-fw-v170-165-164-160-159-145-vaux.html


eobdtool official blog:
http://blog.eobdtool.co.uk/opcom-firmware-1-95-review/

2017年10月22日星期日

Opcom Firmware V1.95 Running Most Stable VS Opcom V1.7 Opcom V1.65

Opel Opcom firmware V1.95 2014V with new program is tested running most stable compare with opcom V1.7, opcom V1.65 and other older versions.

Here you can see Opcom firmware V1.95 PCB:

VS Opcom firmware V1.7 single layer PCB:

SRC: http://www.eobdtool.co.uk/wholesale/opel-opcom-diagnostic-tool.html

VS Opcom firmware V1.65 Dual layer PCB:

SRC: http://www.eobdtool.co.uk/wholesale/opel-opcom-with-two-pcb.html

opcom firmware V1.95 VS opcom V1.7 VS  opcom 1.65 VS opcom 1.59 VS opcom 1.45

Part 1: differences
All versions of opcom differ from each other in the PCB and program.

Part 2: Similarities
  • Price: $18- $23
opcom firmware V1.95 is the most expensive. And the lower firmware version, the cheaper the price.

  • VAUX-COM Software: the Same
VAUX-COM_120309a is compatible with opcom firmware 1.95, opcom firmware V1.7, opcom 1.65, opcom 1.59 and opcom 1.45.
In another word, all versions of opcom perform the same function: read out and clear fault codes, read live data and perform output test. Also, print out, save, or copy the fault codes to any other application. And measure block information on many control modules & show 8 measuring block parameter simultaneously.
VAUX-COM_120309a Download:
http://www.mediafire.com/file/yks663q9gk1w4rf/OP-COM_120309a.zip
(Crack, No pass, No need to active, No virus)

Attach 3 pictures showing Vaux-com 120309a program immobilizer on 1997(V) Omega B X20 XEV.


  • Operation system: the Same
XP & windows7
Installing tips:
1) dotnetfx35_SP1 patch must be installed on Win 7, otherwise the software will not run properly
2) Open software as Administrator; check the installation video in CD first

  • Unable to Update firmware: The Same
opcom crack can't update online, otherwise it will be damaged.

  • No need active: The same

  • Workable Opel models: the same
opcom is compatible with almost all Opel cars, incl. new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B.


  • Workable control units: The same
Works on many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, etc.

That's all.

Eobdtool official blog:
http://blog.eobdtool.co.uk/opcom-firmware-v1-95-running-most-stable-vs-opcom-v1-7-opcom-v1-65/

2017年5月21日星期日

OPCOM clone firmware, which one?

OPCOM firmware 1.70-1.39, which one should you buy?
“OPCOM firmware have not make the tool or software smarter.” mattydr67 said in the MH community. Maybe it’s a good tip for buying opcom clone.



People advertise opcom as v1.65 or v1.70 ( I really don’t know if this is real because the opcom v16xxxx was in Polish not English ) for the one who don’t even know what they buy.
Opcom is a tool that use opcom software. Thr last opcom version is 150406 EN and 150506 DE.
Both is ask to upgrade the firmware in tge opcom tool to fw 1.64

So for opcom clones:
– if you are using opcom china clone 08-2010 which is actually opcom 100219a then the tool must have fw1.39 ( no newer )
-if you are using vauxcom 120309a ( w/ or w/o new data base ) you need to use opcom fw v1.45 ( no newer )

About hardware
There is OP-COM v5 which is using PIC18F458 ( the real one ) and the OP-COM v6 which is using fake PIC ( PIC18F45K80)
Also all chinese clones are Revision B hardware
There is a way to make an adaptor to use a china clone Revision B and Revision C ( can connect to CH-CAN )
There is also Revision D+ hardware ( also for clones). The difference is that D+ has no relayes
There are HQ clone that use their own software. Real software including 150406b/d EN and 150596a DE
The hardware is a China clone opcom v5 and there is Revision B or Revision C too

About opcom update
You need to try an upgrade the opcom software not the firmware.
The new firmware will not give you nothing new unless you will use the newer opcom/vauxcom version
My advice is to install vauxcom 120309a and you will see that it will upgrade the firmware automatically to the version that its method.
All the rest will waiste your time

So this is all you have to know about opcom clones.
If you buy a clone you have to use opcom 100219 ( china clone 08-2010)/fw1.39or vauxvom 120309a ( w/ or w/o new database – fake versions actually )/fw1.45
Good luck!!

2017年5月17日星期三

How to program Code Index Opel Zafira B by OPCOM V1.70?

Here you will know how to program Opel Zafira B Code Index by OPCOM Firmware 1.70? Check step by step as below:

OP-COM Opel Code Index Programming Steps

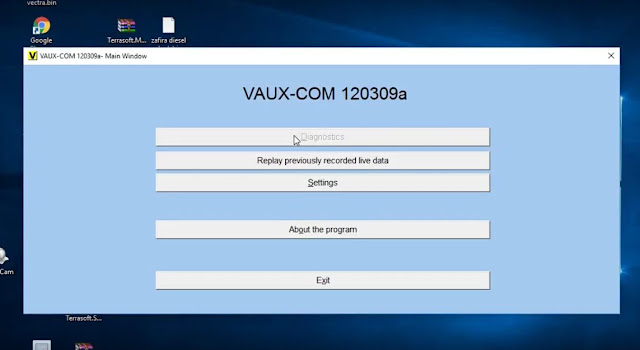

Open OPCOM VAUX-COM 12309a software and go to "Diagnostics".
Select car year and car model: 2008 Zafira-B.
Go to "Information System".
Choose "DIS (Info Display TID, BID, GID, CID)

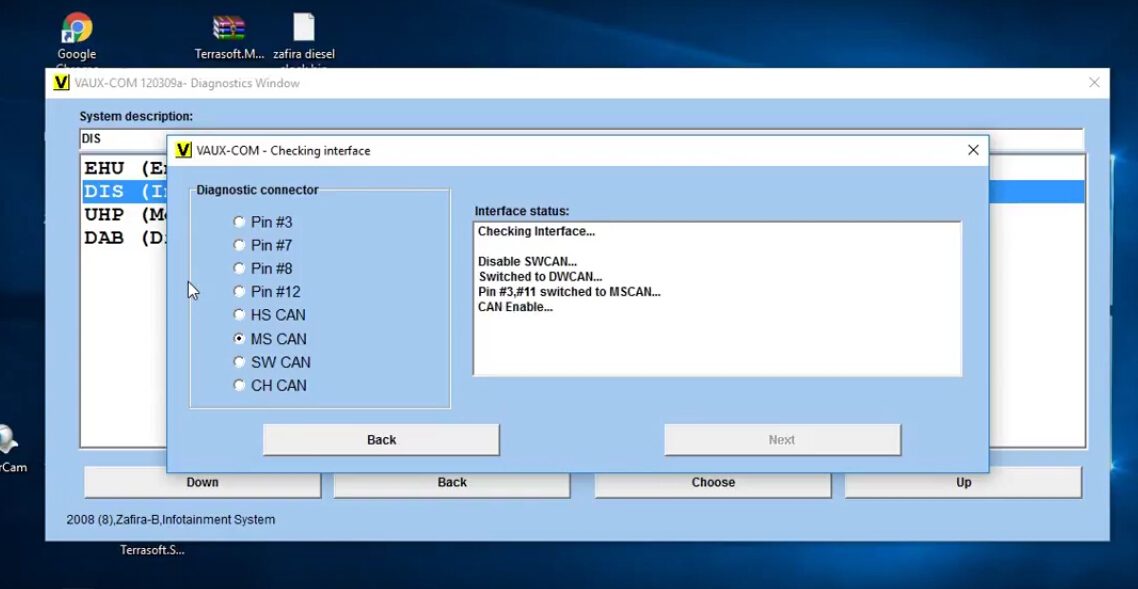

Select Diagnostic Connector: MS CAN
Wait and CAN enable.
Then OP-COM will show all vehicle information as below, click "Programming".
Choose "Program Code Index" function.

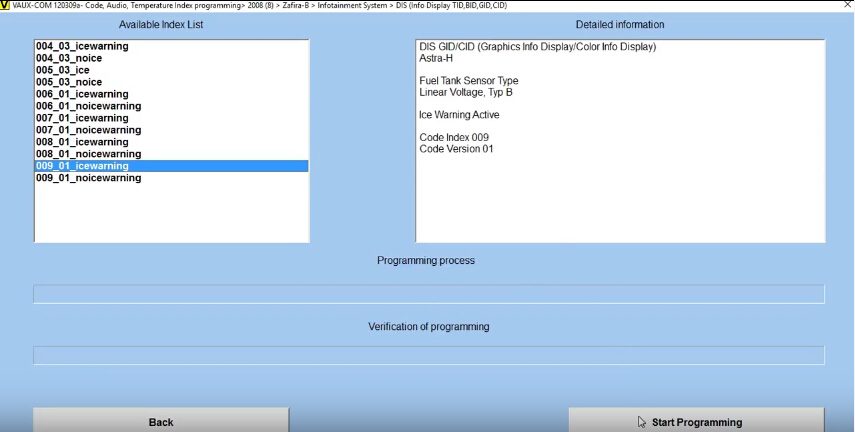

Just choose one of index from the available index list, click "Start Programming" button. Then wait the process complete!
Now Opel Coe Index Programming done by OPCOM China Clone V2014 FW V1.70!
Note: OPCOM Firmware V1.70 with single layer PCB like the original PCB!
Only €20 free shipping here:

OPCOM Firmware 1.70 1.65 1.59 1.45 1.39 PCB Download Free

Opel Opcom PCBs for you! 2017 new Opcom firmware v1.70 v1.65 and old Op-com v1.59 v1.45 v1.39 PCBs all available… Here you go.

OPCOM fw 1.70 1.65 1.59 1.45 1.39 PCB download:

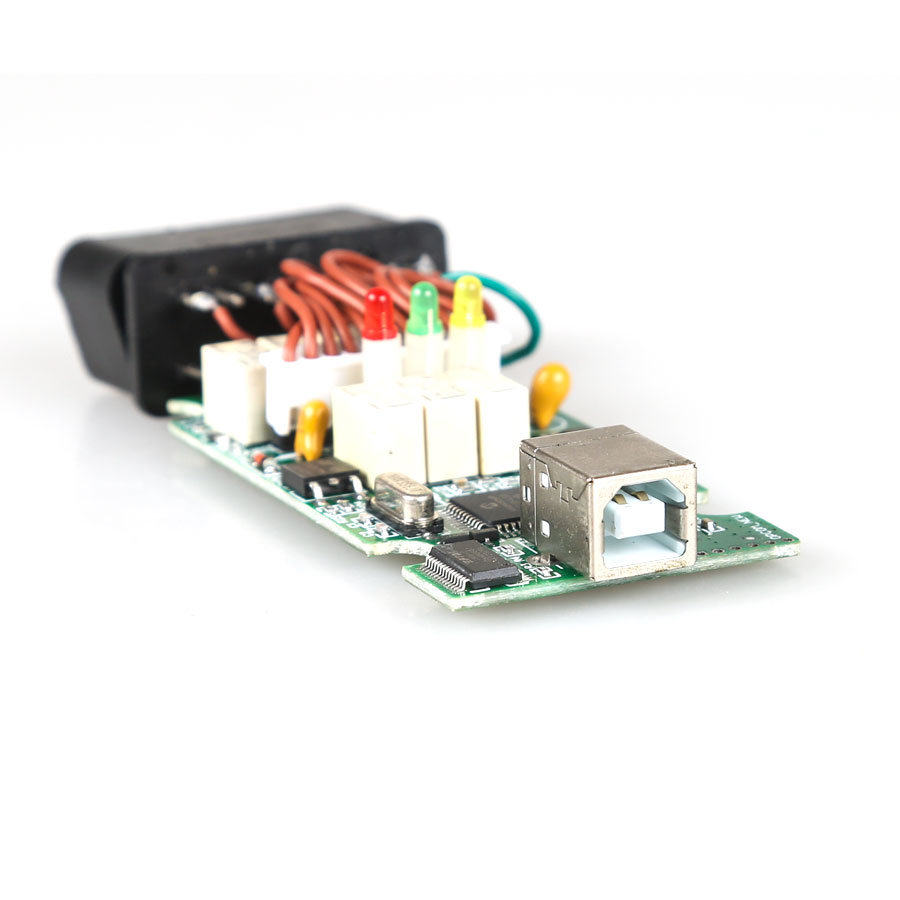

Opcom firmware 1.59 PCB
There are two versions of op-com firmware 1.59
Opcom with item no. sp105
Opcom with item no. sp105-b
Opcom 2009 / opcom firmware 1.39 PCB
Opcom firmware 1.70 1.65 1.59 1.45 download:

VAUX-COM 120309 software download:

Opcom user manual download:

Opcom firmware 1.70 vs Opcom fw 1.65 vs Op-com fw 1.59 vs Op-com fw 1.45

Opel Opcom china clones are different from the PCB design but have the same functions via vaux-com software.

OPCOM Firmware 1.70 1.65 Tested: 100% OK with VAUX-COM 2014/2010

Opcom v1.65 & Op-com v1.70 china clone firmware update! And op com china clone software free download, including opcom 2014 and opcom 2010 software vaux-com.

opcom firmware 1.65 download:
will be available soon
opcom firmware 1.70 download:
will be available soon
opcom firmware 1.59 download:
opcom firmware 1.45 download:

Opcom fw 1.65 vs. Op-com fw 1.70:
Opcom 1.65 vs. Op-com 1.70 only differs from the PCB design;
Share the same features and functions
Optional to work with opcom software vaux-com: ver. 2010, ver. 2014
confirmed to work perfect with opcom 2010 or 2014 software


Opel Opcom basic information:

  1. OPCOM is a special PC-based diagnostic interface especially for OPEL.
  2. Software Version:2010/2014  Firmware Version: 1.65/1.70
  3. DO NOT update opcom online; otherwise, the device would be damaged!

New OPCOM 2010/2014V Software Function:

  1. It covers almost all Opel cars, incl. new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B.
  2. The program allows users to read out and clear fault codes, shows you live data and perform output test.
  3. The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module,
    Instrument Cluster, Electronic Climate Control, Body Control Unit, etc.
  4. Since Opel cars adopt many PINs in the OBD connector, the diagnostic interface works as a multiplexer,
    and users need select the appropriate pin for communication. PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)
  5. Fault codes will be shown with all information available:

Full fault code text description:

1) Full status information (Present, Not present, Intermittent)
2) Users can print out, save, or copy the fault codes to any other application.
From the fault codes window, users can go directly to the measuring blocks window.
3) The program shows measuring block information on many control module, users can choose anything from the list on your own.
4) The program is capable of showing 8 measuring block parameter simultaneously.
The sample rate is depends mostly on the communication protocol.
For example, the older system like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow during communication, while the newer Multec or Bosch units are faster (using KWP-2000), and the newest CAN based control units are very fast!

Users can also run output tests on many controllers.

PIN6-PIN14
PIN3-PIN11
PIN1
HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps
MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps
SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps

How to active DPF Regeneration for Opel Insignia 2011 by OPCOM?

As we know the DPF needs to be cleaned regularly, so this blog will guide you how to use OP-COM China clone 2012 to active filter for Opel Insignia 2011 DPF Regeneration.

First, you need OPCOM interface:
OK, now you can start:
Step1. Open VAUX-COM 120309a software. Choose “Diagnostics”→ “2011 (B)” → “Insignia” → “Engine” → “A 20 DTH”
Step2. Choose “Measuring Blocks” function
Then choose “Exhaust Aftertreatment Data” and you can see many measured values as follows:
Step3. Back to choose “Programming” then “Regeneration D. Particulate Filter” then “Start Activation” and that’s all steps. In this way you can use OPCOM to active filter for Opel Insignia!
